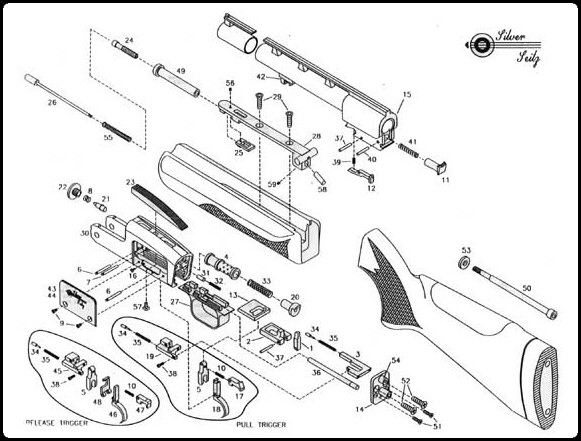

Parts and Accessories


 Download PDF file  here

Download PDF file here


1/2 - SHOE BLOCK ASSEMBLY - $125.00

3 - PUSHER PLATE - $130.00

4 - PLUNGER - $140.00

5 - LOCKING BAR LEVER - $95.00

6 - LEVER & TRIGGER PIN 1.060 LG. 1- 15.00

7 - SEAR PIN 1.160 LG - $15.00

8 - FIRING PIN SPRING - $10.00

9 - COVER PLATE SCREWS - $12.00

10 - SEAR SPRING - $10.00

11 - EJECTOR - $140.00

12 - EJECTOR FINGER - $90.00

13 - LOCKING BAR - $300.00

14 - END PLATE - $110.00

15 - MONO BLOCK & BBL ASSEMBLY - $2,750.00

15A - ADJUSTABLE RIB & BBL ASSEMBLY - $3,250.00

15B - ADJUSTABLE RIB - $400.00

16 - STOP SCREW - $15.00

17 - PULL SEAR - $125.00

18 - PULL TRIGGER - $125.00

19 - SIDE BLOCK (PULL) ASSEMBLY - $275.00

20 - RETAINER - $75.00

21 - FIRING PIN - $75.00

22 - FIRING PIN CASING - $82.00

23 - RECEIVER COMB - $85.00

24 - FOREARM BOLT - $45.00

25 - FOREARM LOCKING BLOCK - $55.00

26 - RELEASE ROD - $50.00

27 - TRIGGER GUARD - $350.00

28 - FOREARM PLATE - $375.00

29 - FOREARM PLATE SCREW - $2.50

31 - SHOE SPRING CAP - $15.00

32 - SHOE SPRING - $8.00

33 - PLUNGER SPRING - $22.00

34 - SPRING PLUNGER - $5.00

35 - SLIDE BLK AND PUSHER PLATE SPRING - $15.00

36 - COCKING ROD - $60.00

37 - SHOE PIN & EJECTOR FINGER PIN - $15.00

38 - SLIDE BLOCK SPRING - $5.00

39 - EJECTOR FINGER SPRING - $8.00

40 - EJECTOR PIN - $15.00

41 - EJECTOR SPRING - $15.00

42 - FOREARM LATCH - $110.00

43 - LEXAN COVER PLATE - $100.00

43A - ENGRAVED LEXAN - $150.00

44 - ENGRAVED STEEL COVER PLATE - $350.00

44B - RE-ENGRAVED (INSTALL INSERT) - $150.00

45 - RELEASE SLIDE BLOCK - $350.00

46 - RELEASE TRIGGER - $135.00

47 - RELEASE SEAR - $125.00

48 - RELEASE CATCH - $130.00

49 - FOREARM SLEEVE - $85.00

50 - STOCK BOLT - $40.00

51 - PUSHER PLATE SCREW - $4.00

52 - END PLATE BOLT - $4.00

53 - STOCK BOLT WASHER - $8.00

55 - RELEASE ROD SPRING - $15.00

56 - RELEASE ROD ALLEN SET SCREW - $3.00

57 - RECEIVER COMB SCREW - $5.00

58 - FOREARM COCKING PIN - $45.00

59 - COCKING PIN SET SCREW - $3.00

60 - FRONT  BEAD - $8.00

60A - MIDDLE BEAD - $6.00

63 - RELEASE TRIGGER ASSEMBLY - $900.00

64 - PULL TRIGGER ASSEMBLY - $500.00

65 - ADJUSTABLE COMB HARDWARE SET - $65.00

66A - FOREARM WEIGHT GOLD (2.5 OR 5 OZ) - $175.00

66B - FOREARM WEIGHT GOLD (2.5 OR 5 OZ) - $150.00
